15 Upgrade REDCap Version
Chapter Leads: Will Beasley
15.1 Preparation
15.1.1 Release Cadence
For these reasons explained in Chapter 14, it is vital that REDCap is upgraded soon after versions are released.
Notifications that a new version has been released will appear in the control center. So as the server administrator is attending to the TODO list periodically in the day, they should check for updates as well.
However most regular releases occur Friday afternoons, so your admin team should schedule time to upgrade the server during this window.
Allowing for a minimal regiment of testing and validation (say, 15 minutes), the following procedure should take about 30 minutes per server after you’ve performed it a few weeks. It can be completed faster if you rush, but we suggest blocking off at least 30 minutes so you can be more observant and patient if something doesn’t look right.
15.1.2 Avoid Easy Upgrade Feature
As of February 2026, best practices recommended not using the “Easy Upgrade” procedure. See Community Post qqqq for further details.
15.1.3 Offline vs Online Upgrade
15.1.4 Version Skipping
15.1.4.1 Little Skips
If you upgrade every week, there won’t be much opportunity to skip over versions, say from 10.2.3 to 10.2.6. Go ahead and make a small jump like this, especially if the versions were released quickly in succession to address bugs.
15.1.4.2 Big Hops
However if your installation is months behind, say from 10.2.3 to 12.4.2, the chance of an unhappy upgrade increases. Not only is more PHP code changing, which is interacting with external components like LDAP or FHIR, but the MariaDB database structure is changing more too.
So given the larger risks of big hops we recommend:
- Upgrading and validating the non-production instances first.
- Taking the production instance offline.
- Upgrading only ~3 months of versions at a time.
- Snapshotting before each jump (and don’t delete them until the entire upgrade process is complete)
- Validating after each jump.
15.2 Test and Production Instances
The steps above pertain to updating a single instance of REDCap. In addition to your production instance, we strongly suggest you host a test or development too. If so, perform these steps on the non-production server and verify things operate correctly to minimize the chance the research will be disrupted when you upgrade the production instance.
TODO: add footnote
The distinction between a test instance and development instance is important to some aspects of server administration, but not to this aspect. Update all the nonproduction servers you have before your production servers.
15.3 Steps
15.3.1 Snapshot VM
In addition to any MariaDB-level backup, we recommend taking a snapshot immediately before upgrading. This should involve a snapshot of both the database server and the web server.
For cost and performance considerations, we typically retain only the most recent snapshot of each server.
15.3.2 Download
Log into the REDCap Community site and download the latest version. Make sure you select the correct value among these three dimensions: (i) LTS vs Standard, (ii) “Update” (as opposed to the “Fresh Installation”), and (iii) version number.
15.3.3 Transfer file
Transfer the zipped file from your client machine to the web server, using a tool like WinSCP. For this scenario, say it’s transferred to the “Downloads” directory of the “eaglesmith” account.
15.3.4 Update Web Server
The first component to be upgraded is the PHP code residing on the web server, so log into the web server.
Decompressed the files and move them to the appropriate REDCap folder where they are visible and available to users.
On a Linux distribution like RHEL, the code is:
# !! This is rough from memory. I haven't tested it yet. !!
# Unzip the file into a directory.
unzip /usr/eaglesmith/Downloads/redcap_*.zip
# Move the directory to a redcap subdirectory.
mv /usr/eaglesmith/Downloads/redcap_ /var/www/html/redcap15.3.5 Obtain SQL Update Code
The second component to upgrade is the database, which involves executing SQL code that REDCap’s installation process provides you.
TODO: replace with the real link:

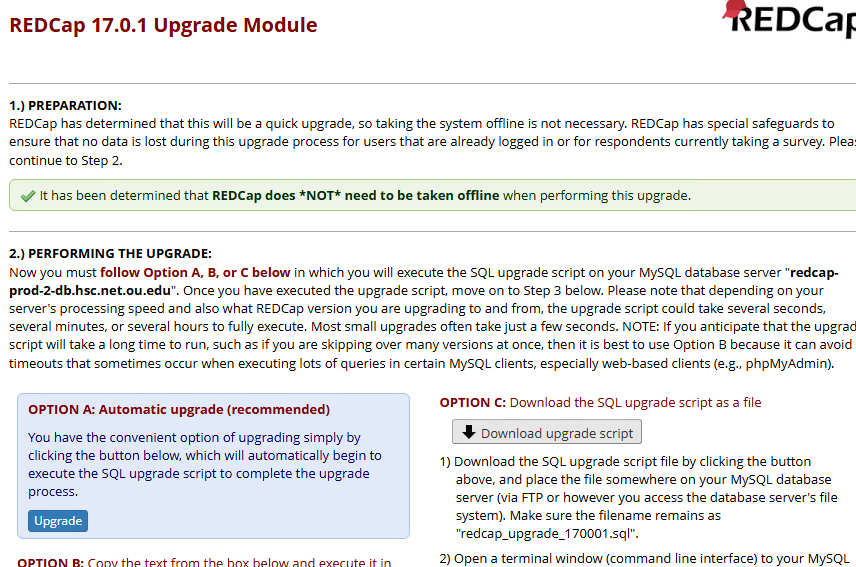

After moving the PHP code, go to <redcap-installation>/upgrade.php, from your desktop. The page should indicate that the previous step was successful and provide SQL code.
Save the code as a sql file, then transfer the file from your desktop to the database server, specifically usr/eaglesmith/redcap-upgrades. For the sake of consistency, use the same approach as you transferred the PHP code to the web server in the previous step.
TODO: add as a foot note > It may be possible to copy the code from the web page and > paste it into the database IDE, > but we prefer the proposed approach for two reasons: > > 1. the sql file helps document changes if you need to reconstruct something > 1. It’s tricky moving the code across machines if > the linux server-client procotol doesn’t support copy-paste operations.
15.3.6 Update Database Server
Log into the database server and open a database IDE. Open the new upgrade sql file. Execute the entire file.
Although the entire file should be executed eventually, but you can chose either line-by-line or all-at-once. If it’s a small hop between versions and the upgrade went smoothly on the non-production instance, consider making your life easier and hitting the Run button just once.
However if there were previous problems, we recommend a more conservative approach. Possibly there were problems upgrading the non-production instance. Or perhaps that ran smoothly, but the production upgrade failed, so you rolled back to your VM snapshot. Run small snippets of the code individually. This incremental approach will help you identify where the code failed, and therefore be more suggestive how to solve the problem.
TODO: footnote: > MySQL Workbench is a popular IDE for MariaDB/MySQL databases. > Our slight preference is DBeaver.
You don’t need to learn SQL to upgrade REDCap, but a little understanding of the process could help if the process doesn’t go smoothly.
All upgrades will involve a least one line of DML SQL code that adjust configuration values, like the one that increases redcap_version.
More substantial upgrades involve DDL SQL code that modifies the structure of the database, like adding a table to support a new feature.
15.3.7 Verify Installation

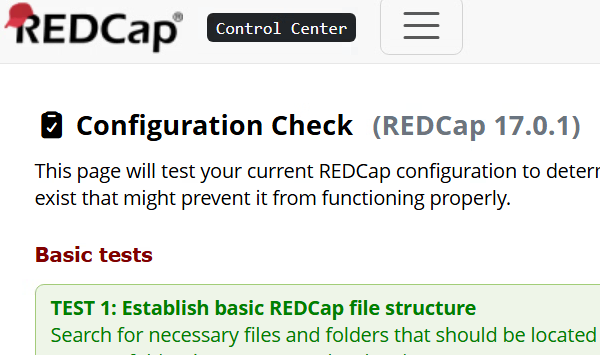

- Config Check page
- Test and Validate
15.3.8 Clean Up
- Delete Previous Versions
This chapter was started in March 2026. If you have suggested modifications or additions, please see How to Contribute on the book’s welcome page.
